OLP-2951 (Rev. 06/19/12)

GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com

1 - 8 8 8 - 6 9 - 4 3 - 5 3 3

GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company.

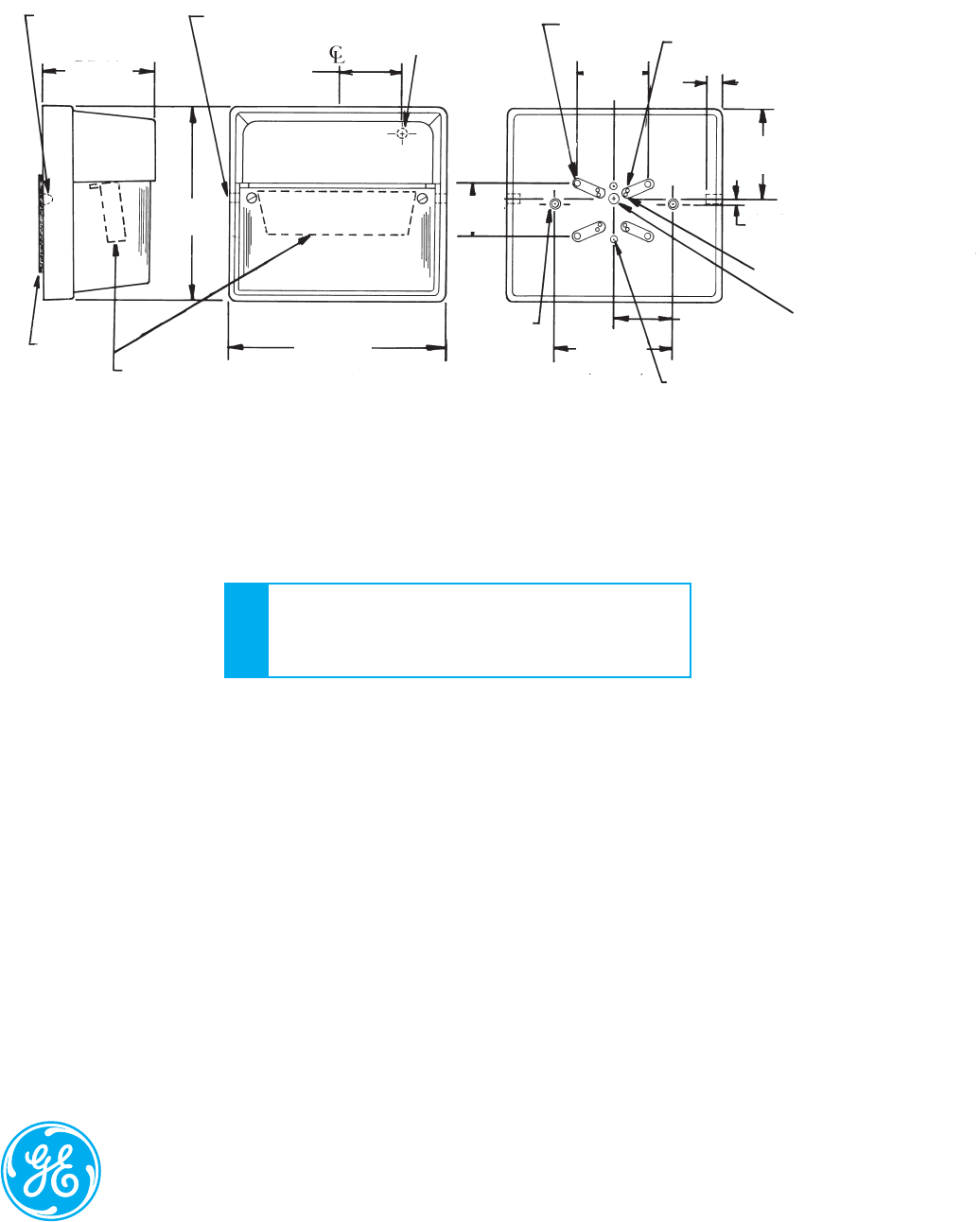

Product Dimensions

• Approximate Net Weight: 15-30 lbs (8-14 kgs)

• Suggested Mounting Height: 8-20 ft. (2-6 M)

DATA

14.438 in.

(367 mm)

.437 in. DIA

(11 mm) DIA

(2 PLACES)

8.000 in.

(203 mm)

2.875 in.

(73 mm)

4.000 in.

(102 mm)

.875 in. (22 mm) DIA

.150 in.

(4 mm)

6.344 in.

(161 mm)

1.375 in. (35 mm) MAX

.625 in. (16 mm) MIN

12.875 in.

(327 mm)

7.750 in.

(197 mm)

4.000 in.

(102 mm)

4.375 in.

(111 mm)

KNOCKOUT FOR

.75 in. (19 mm)

CONDUIT

CRADLE FOR

.75 in. (19 mm) CONDUIT

.686 in. (17 mm) DIA

KNOCKOUT FOR

PE KIT ASSEMBLY

.358 in. (9 mm) DIA KNOCKOUT

(4 PLACES)

.188 in. (5 mm) DIA KNOCKOUT

FOR USE WITH 4.000 in. (102 mm)

OCTAGON BOX (4 PLACES)

.188 in. (5 mm) DIA KNOCKOUT

FOR USE WITH GEM-BOX

GASKET

INTERNAL GLARE

SHIELD OPTION

.188 in. (5 mm) DIA KNOCKOUT

FOR USE WITH 3.250 in. (83 mm)

OCTAGON BOX (4 PLACES)

1 2 3 4
